Introducing the NEXT Generation Artisan ACF-600 series Digital Electronic Servo Sewing Machine Motors.

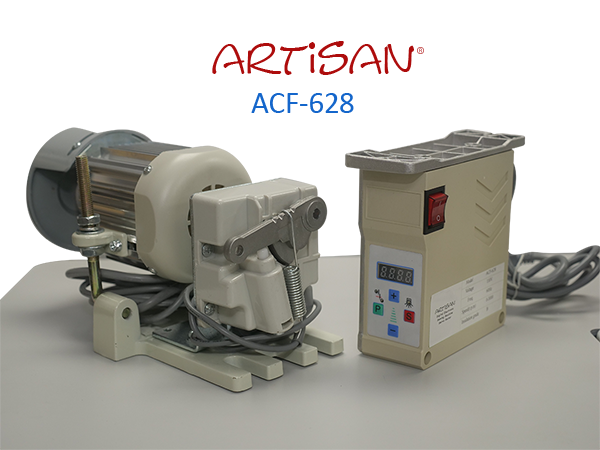

The ACF-600 series motors are engineered to the highest industry standards. The latest ACF-628 model delivers 4.1 Nm of torque and 750 watts of power—nearly a full horsepower. In comparison, standard obsolete 1/2 hp clutch motors generate just 400 watts.

This motor system features a V-belt adjustment mechanism, a fully enclosed pulley cover, a complete wiring harness with a rocker-style on/off switch, and a control box is equipped with a 110-volt lamp receptacle, push-button controls, and a digital display.







The new-generation speed controller is fully electronic, offering exceptional precision. ACF-600 series motors start smoothly and gradually, transitioning seamlessly from a standstill to the operator’s desired sewing speed or the maximum preset speed. These motors deliver full torque from the very first revolution, maintaining consistent power across the entire speed range.

Top-end speeds can be easily adjusted digitally, providing complete control and ensuring a safe, customizable operating range. Each electronic P.C. motherboard and controller is built with high-quality components, guaranteeing years of reliable, trouble-free performance.





When it comes to value, performance, and reliability, the new Artisan ACF-600 series motors stand out as the best digital electronic servo motors for sewing machines. The ACF-600 series is highly recommended for all medium-duty to light-heavy-duty walking foot sewing machines. For high-speed lockstitch single or double-needle sewing machines, sergers, overlock machines, coverstitch, and interlock machinery—whether for leather or fabric—the ACF-550 model, with its 550-watt servo motor, is the ideal choice.

An optional externally mounted synchronizer with a complete mounting kit is available for all ACF-600 series motors. When installed, this synchronizer converts the motor into a specialized Needle Positioner Motor System, ensuring the needle consistently stops in the down position. A slight heel-back motion on the foot treadle then raises the needle to the up position. This feature enhances sewing efficiency and reduces operator fatigue in production environments. (Not recommended for leather stitching applications.)



The Artisan ACF-600 Series Servo Sewing Machine Motors are designed for easy retrofitting to nearly any industrial sewing machine or motor stand. Simply replace the outdated clutch motor, bolt in the new energy-efficient servo motor, and connect the wiring harness—installation takes approximately 25 minutes.

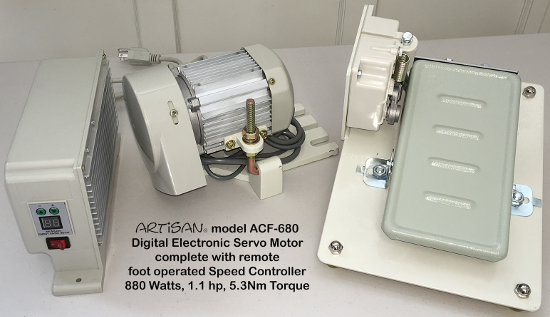

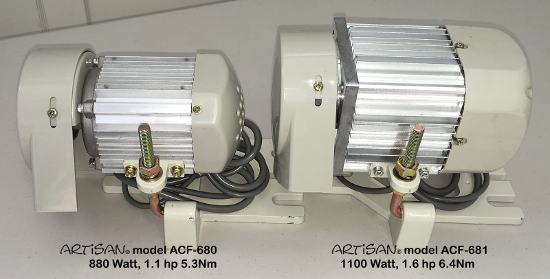

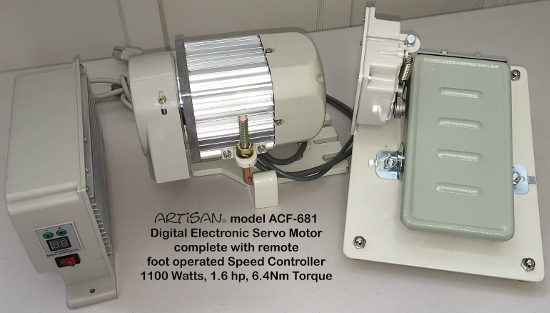

Artisan offers a range of electronic servo motors tailored to various sewing applications. For very heavy-duty sewing, such as with Artisan TORO Stitchers, the ACF-680 series delivers 800 watts of power (1.1 hp) and 5.3 Nm of torque. For even more demanding applications, the new Artisan ACF-681 electronic servo motor provides an impressive 1100 watts (1.65 hp) and 6.0 Nm of torque—making it the most powerful sewing machine motor available.

Using an ACF-680 or ACF-681 High Torque Motor for thick, heavy sewing applications eliminates the need for an outdated speed reducer. Both motors can be mounted in the standard under-table position or, as with the Artisan TORO-3200BT, TORO-3200 “U,” and TORO-3200 Ped-500 series stitchers, on top of the table for improved efficiency by eliminating the need for a long V-belt.

All ACF-680 and ACF-681 motors come equipped with a remote, foot-operated electronic speed controller, a P.C. controller box with an illuminated on/off switch, and a 110-volt lamp receptacle. Additionally, all Artisan motors feature a V-belt adjuster and a safety cover to protect the pulley area.



Effortless and precise speed control is now the standard, making sewing smoother and more manageable than ever. All Artisan Servo Motors feature digitally adjustable speeds, ranging from a complete stop to a ceiling speed as low as 200 RPM, up to a full 3600 RPM when needed—or any speed in between.

With customizable settings, you can sew as slowly as stitch by stitch or set the maximum speed to your preference—whether it’s 50, 200, 900, 1200, or even 1500 stitches per minute. This ensures complete control, preventing the machine from running faster than desired.

Additionally, all Artisan servo motors include a powerful electronic braking system that stops the sewing machine almost instantly, providing enhanced precision, control, and confidence for the operator.



Effortless and precise speed control is now the standard, making sewing smoother and more manageable than ever. All Artisan servo motors feature digitally adjustable speeds, ranging from a complete stop to a ceiling speed as low as 200 RPM and up to 3600 RPM when needed—or any speed in between.

With customizable settings, you can sew as slowly as stitch by stitch or set the maximum speed to your preference—whether it’s 50, 200, 900, 1200, or even 1500 stitches per minute. This ensures complete control, preventing the machine from running faster than desired. Additionally, each Artisan servo motor is equipped with a powerful electronic braking system that stops the machine almost instantly, providing enhanced precision and confidence while sewing.

Upgrading from an outdated, noisy clutch motor to a quiet, energy-efficient Artisan ACF series digital servo motor is a simple and quick DIY project. Call us, and we’ll help you choose the best model for your needs while guiding you through the easy installation process. With incredible operator control, Artisan motors empower you to produce the finest sewn products possible.

Sewing Machinery Servo Motors

ACF-628 (750 Watts)
$220.00
Optional ACF-628 SCZ Needle Positioner Synchronizer — $69.00

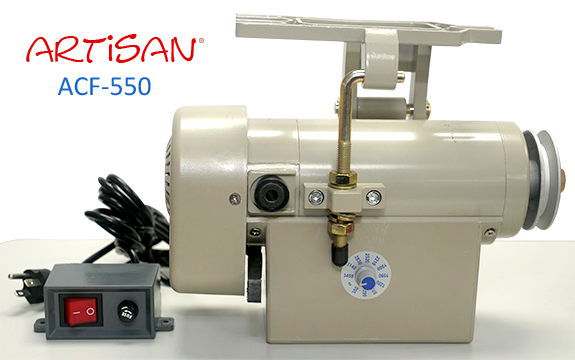

ACF-550  (550 Watts)
$195.00

ACF-680 (880 Watts)
$315.00

ACF-681 (1100 Watts)
$410.00

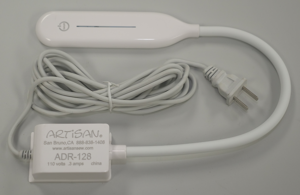

ADR-128 Magnetic Base SMT LED Sewing Machine Lamp — $25.00

Magnetic Gooseneck LED Lamp, 110 volts, 6 watts, energy saving. Touch Sensor Control ON/OFF, Dimmable Brightness, No Shadows, Ambient Temperature, Never gets hot.
